Plastic Dimpled Foundation Membrane for Waterproofing and Drainage System Installation

Name: Plastic Dimpled Foundation Membrane for Waterproofing and Drainage System Installation
Brand: TAIAN HONGYUAN
Price: 1.99 USD

Wholesale Plastic Dimpled Foundation Membrane for Waterproofing and Drainage System Installation from china suppliers

Warranty : 5 years

After-sale Service : Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement

Project Solution Capability : graphic design, 3D model design, total solution for projects, Cross Categories Consolidation

Application : Hospital, Hotel

Design Style : Modern

Place of Origin : Shandong, China

Brand Name : TAIAN HONGYUAN

Model Number : HY-DB

Type : waterproof board, Water Stop

Material : hdpe

Shape : Rectangle

Core Material : HDPE

Format : Microporous

Product Name : waterproofing drainage board

Color : Customized Colors

Usage : Engineering Construction Waterproofing

Function : Contruction Waterproof

Feature : Durable

Keywords : 3d polyethylene drainage mat dimple board

Certification : ISO

Size : 8-60MM

Packaging Details : Plastic Packing Belts

Port : QINGDAO

Supply Ability : 20000 Square Meter/Square Meters per Day

MOQ : 1000 square meters

Price : $1.99/square meters 1000-9999 square meters

Contact Now

Products Description

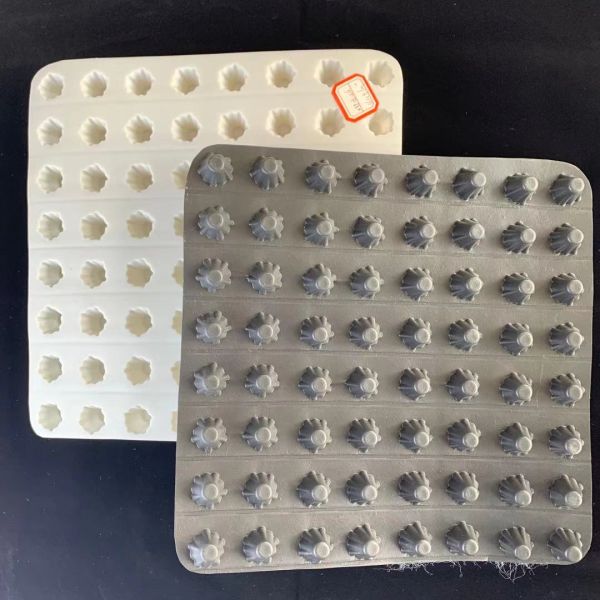

Drain board

HDPE water drainage board also call plastic drainage sheet is a type of green roofing and foundation driange systems which are drained by a special molding plastic sheets. Water is retained and drained off within dimple on the upper sides of the drainage board; excess water spills over the edges of the plates and is carried off from the roof or foundations. The plastic or HDPE drainage board are made from HDPE(high-density polyethylene), using high pressure to inject plastic to form hole-lump-shaped shell, with stereo space and support level; in the top of the shell, covering with non-woven as filtering level for water percolation, water storage and water drainage.

Plastic Dimpled Foundation Membrane for Waterproofing and Drainage System Installation

Product Paramenters

Item			Index
Tension at 10% Elongation (N/100mm) ≥			350
Max.Tension (N/100mm) ≥			600
Elongation at Break (％) ≥			25
Tearing Strength (N) ≥			100
Compression	Maximum Strength at Compression Rate of 20％≥	150
Compression		Performance After Full Compression	No Cracks
Flexibility at Low Temperature			- 10℃ No Cracks
Heat Aging (80℃，168h)	Tension Retention at 10% Elongation	80
		Max.Tension Retention(％)	90
		Retention Rate of Elongation at Break (％) ≥	70
		Max.Strength Retention Rate at Compression Rate of 20%,≥	90
		Performance After Full Compression	No Cracks
		Flexibility at Low Temperature	- 10℃ No Cracks
Longitudinal Flow Capacity (Lateral Pressure 150 KPa)			10

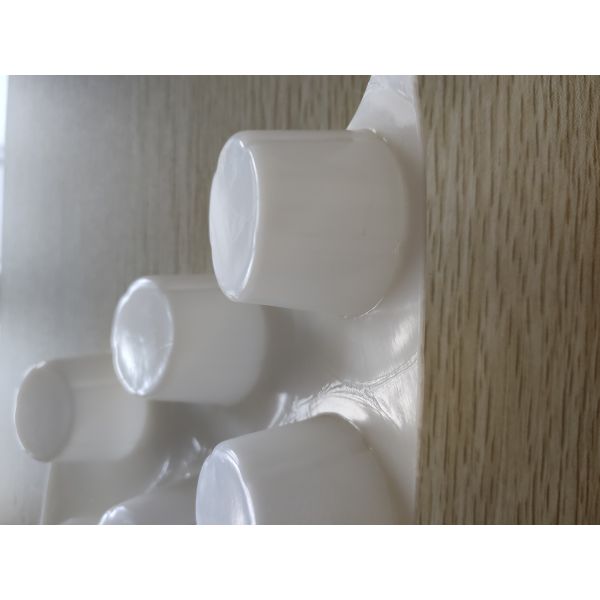

Pit diameter 30mm products

Pit height 60mm Product

Main performance of drain board

1. Drainage
The concave convex hollow vertical bar structure that all drainage boards have can quickly and effectively drain the accumulated water and reduce the hydrostatic pressure from the waterproof layer. Through this active water conduction principle, the effect of active waterproof of drainage boards that are hard blocked with gravel and sand is obviously compared.

2. Waterproof performance
Polyethylene (HDPE) waterproof and drainage protection board material itself is a particularly good waterproof material. By using a reliable connection mode, the waterproof and drainage board becomes a good auxiliary waterproof material. And HDPE itself has wear resistance, heat resistance, cold resistance, wear resistance, acid and alkali resistance, which can be better used on the site.

3. Protection
The drainage protection board can effectively protect the hydrostatic pressure of structures and waterproof layers, and resist the
penetration of various acids and alkalis in the soil and the roots of small trees and shrubs. When backfilling the outer wall of the basement, it can effectively protect the building and waterproof layer from damage.

4. Shorten the construction period and reduce the cost
The construction of the drain board is convenient and fast. It can be directly paved and welded with a welding machine, or it can be stuck with glue (glue here refers to special glue).

5. Long shelf life
Generally speaking, the service life of drain boards can support more than 20 years, not to mention that good drain boards can have the same service life as buildings. Different drain boards use different materials, which will cause drain boards to have characteristics such as HDPE as raw material, environmental protection, high wear resistance, and long service life. PVC drain boards are nonflammable, high-strength, and resistant to climate change.

Application Scenarios

Title goes here.

1. Greening project: the garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc. 2. Municipal engineering: airport, road embankment, subway, tunnel, landfill, etc.

3. Construction: the upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage control and heat insulation layer, etc.

4. Water conservancy project: the reservoir seepage water, reservoir, lake water seepage control, etc.

5. Traffic engineering: highway, railway basement, roadbed, dam and slope protection layer, etc.

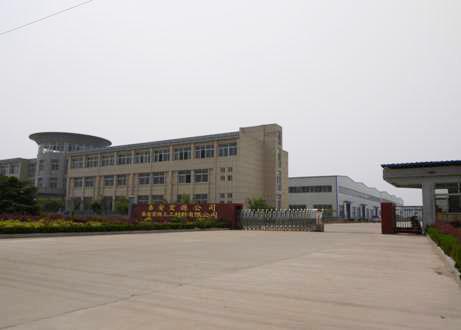

Company Profile

Taian Hongyuan Geosynthetics Co., Ltd is one industrial and trading enterprise, Our products have been exported to many countries, and are widely used in water conservancy, railway, highway, basement and subway etc, we can ensure you that our quality is stable, reliable and convenient for construction, the price is reasonable, and after-sales service is satisfied.

So we have many regular customers all over the world and gained good reputations from them. Our products have joined the great construction projects in China as well and do great contributions to our basic constructions such as landfills and lakes. We have passed ISO 9001 and 14001 certificates, and have many third- party test certificates.

Your Success is our glory! Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you come and visit our fac.

And if we are lucky we can cooperation with each other.

For any questions, or any further support, please don't hesitate to contact us. Hope we can be cooperation -lifelong friends.

Packing & Delivery

Plastic Packing Belts

FAQ

1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid East(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
bentonite mat,swellable mat,geocell,geomembrane,geotextile

4. why should you buy from us not from other suppliers?
Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
geotextile, GCL(Geosynthetic clay liners) and geotechnical materials. Our products have been exported to many countries, and are

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
